Accessary equipment for expanded mesh machine

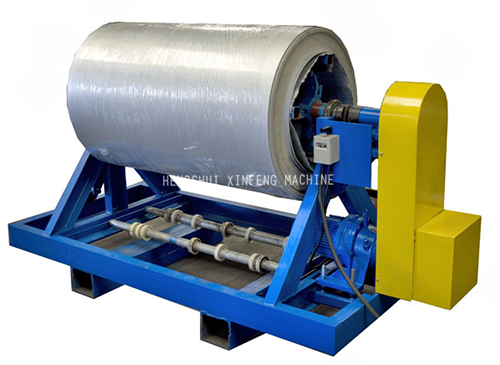

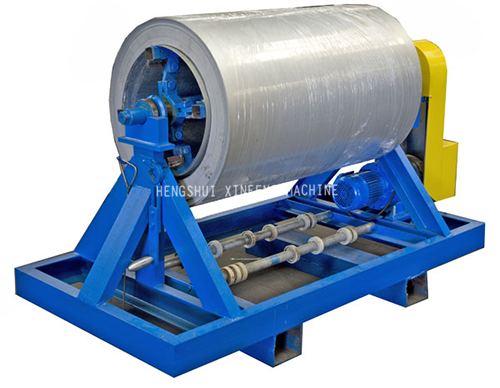

1: (1-5T)DE-COILER-(XF-I)

MODEL	XF-I-600	XF-I -1000	XF-I -1300	XF-I -2000
WIDTH	600mm	1000mm	1300mm	2000mm
LOADING WEIGHT	2T	3.5T	5T	10T
INNER DIAMETER	405mm	508mm	508mm	508mm

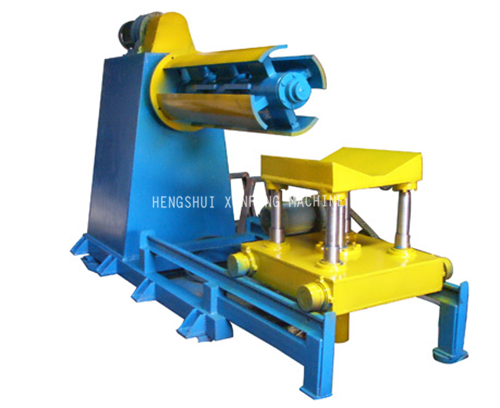

2：(1-5T)DE-COILER-(XF-II)

MODEL	XF-II-600	XF-II -1000	XF-II-1300	XF-II -2000
WIDTH	600mm	1000mm	1300mm	2000mm
LOADING WEIGHT	2T	3.5T	5T	10T
INNER DIAMETER	405mm	508mm	508mm	508mm

3：(5-10T)DE-COILER-(XF-III)

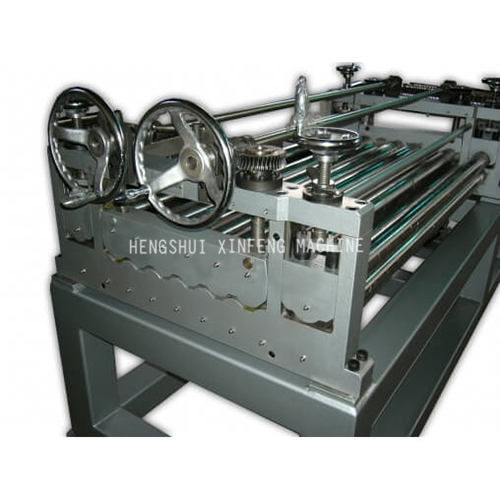

4；expanded metal mesh flating and Straightening Machine

Main Technical Parameters:
Material thickness: 0.5-1.2mm
Max. mesh width: 1300mm
Roller diameter: 55-60mm
Motor power: 3.0kw
Roller quantity: 15 pcs leveling + 2 pcs feeding
Roller material: H13, heat treatment
Speed: 8-12m/min
Overall size of machine(L*W*H): 2150*1345*1580mm
Machine weight: 1.5 Ton
Remarks: expanded mesh straightening/leveling machine can flating and Straightening Machine of the expanded metal mesh.

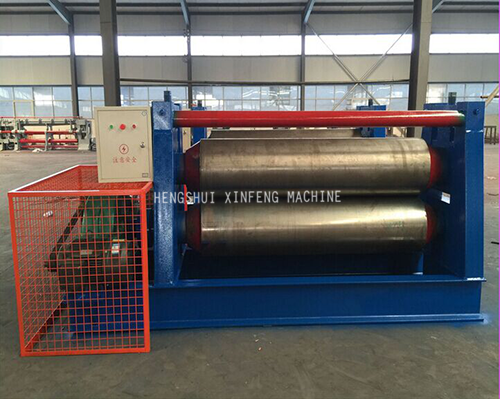

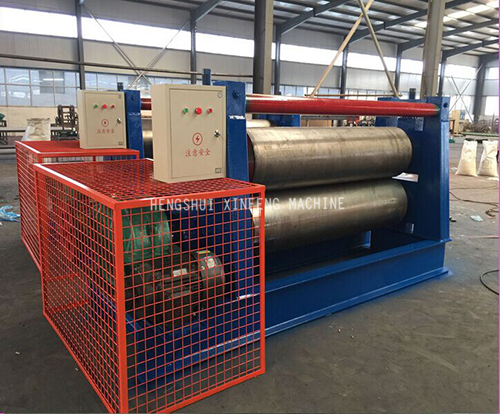

5; expanded metal mesh Flatten machine.

MODEL	XF-YP800	XF-YP1000	XF-YP1300	XF-YP1500
WIDTH	800mm	1000mm	1300mm	1500mm
THICKNESS	Max 1.0mm	0.5-1.5mm	0.5-1.5mm	0.5-2.0mm
ROLLER DIAMETER	250mm	300-400mm	300-400mm	400-500mm
MACHINE WEIGHT	2.6T	2.5T/2.8T	4T	6.5T/5.5T
MOTOR POWER	4KW	4KW	5.5KW	7.5KW
